Franatech - Laser Methane Sensor: Plug ’N‘ Forget, Maintenance and calibration free

Laser Methane Sensor

Franatech - Laser Methane Sensor: Plug ’N‘ Forget, Maintenance and calibration free

Application

Designed for for mobile deployment
Fast reaction: T90 – time of 10 sec.

  • Grid surveys

  • Baseline mapping

  • Leak detection

  • Asset integrity survey

Short mob / demob time
Qualified for submersible Alvin and AUVs

Features

  • Maintenance and Calibration free

  • Fully operational within minutes

  • Simple data structure

  • Low constraint on transmission

  • Integrated status management

  • Optional internal data logger with over 37,000,000 datasets capacity

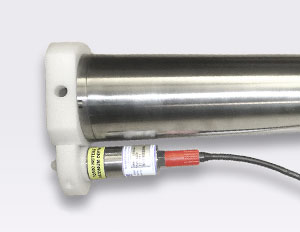

Franatech - Laser Methane Sensor

Specifications

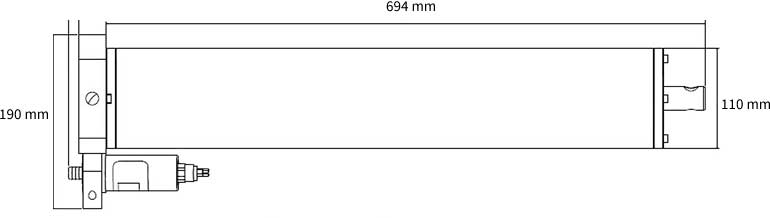

  • Dimensions L x D:

    694 x 190 mm


  • Weight in air:

    14 kg


  • Water displacement:

    5.9 L


  • Weight in freshwater:

    8 kg


  • Depth rating:

    4000 m


  • Operating temperature:

    -3 °C - + 20 °C


  • Range:

    2 - 10000 ppmv


  • Reaction time:

    5 s


  • T90 time:

    10 s


  • Supply Voltage:

    11 – 30 VDC


  • Power consumption:

    5 W


  • Output:

    RS232 / RS485 (user select)
